Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H

AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-1 AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-2 AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-3 AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-4 AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-5 AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H-6
AVR-X1600H Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H

Denon 4K Ultra HD 7.2 Channel AV Receiver with 80W per Channel AVR-X1600H

(20) SKU: 111620708 MODEL: AVR-X1600H
Denon Logo

Price includes any available discounts

Overview

Upgrade your home theater with the Denon AVR-X1600H receiver, now at RC Willey. With 80W per channel (8 ohms, 20Hz-20kHz, .08%, 2 ch driven), this performance-tuned Denon AV receiver provides a truly immersive 3D audio experience. Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™, and DTS Virtual:X. Watch your TV or projector video content with the best possible picture thanks to the latest 4K video technologies like Dolby Vision™, HDR10, and HLG.

With eARC support pass-through, 6 HDMI inputs and 1 output with full HDCP 2.3 support on all ports, enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC, and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Pandora®, Tidal and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. The Denon AVR-X1600H also works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.

By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different — that’s why Denon uses premium room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.

Features

  • 7.2 channel AV receiver with 80W power per channel
  • Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X
  • 6 HDMI inputs with full HDCP 2.3 support, 1 HDMI output
  • 4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020
  • Award-winning Denon Setup Assistant and graphical user interface
  • Amazon Alexa, Google Assistant and Apple Siri voice control
  • HEOS Built-in wireless multi-room music streaming technology
  • Smart TV connectivity
  • Enhanced Audio Return Channel (eARC)
  • Game Mode
  • Supports Spotify, Pandora, TuneIn, Deezer and more
  • High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support
  • Integrated Phono input
  • DSP chip with four 300MHz DSP cores
  • All Zone TV audio
  • Audyssey MultEQ XT calibration software
  • “ihiji Invision”, “Domotz Pro” and "OvrC" remote system monitoring and management technology

Specs

Model AVR-X1600H
Dimensions 17.1"W x 13.3"D x 6"H
Weight 19 lbs.
Finish Black
Multichannel Surround
DTS HD Master / DTS:X ✓ / ✓
DTS Neo:X / DTS Neural:X X / ✓
Dolby TrueHD / Dolby Atmos -
Dolby ProLogic Ilz / Dolby Surround X / ✓
Multichannel Stereo
Max Number of Processing (Preamp) Channels 7.1
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization ✓ / ✓ / ✓ (update)
Sound Enhancements
Discrete Power Amplifier
Pure Direct
Audyssey MultiEQ XT
Audyssey Dynamic EQ / Dynamic Volume ✓ / ✓
Compressed Audio Restorer
HDMI
HDMI Inputs: Back / Front 5/1
HDCP 2.2 Support ✓ (HDCP 2.3)
HDMI Outputs: Main / Zone 1/X
GUI Overlay on HDMI
3D Signal Pass-through
4K Signal Pass-through / Scaling / GUI Overlay ✓ / X / ✓
HDMI Pass-Through in Standby Mode
Picture Adjust / Noise Reduction -
CEC
DSD Audio Capability -
Audio Return Channel
Auto LipSync
HDMI: 3D / 4K / CEC / ARC / InstaPrevue ✓ / ✓ / ✓ / ✓ / X
HDR / HLG / Dolby Vision ✓ (HDR10) / ✓ / ✓
ALLM (Auto Low Latency Mode) Pass-through for gaming
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
ISF Certification -
GUI Languages 3
Setup Assistant
Quick Select Plus / Quick Select ✓ / X
Firmware Update by: Network / USB ✓ / ✓
Variable Cross Over
Optimized Bass Redirection
Bass Sync -
ECO Mode
Auto Power Off
Sleep Timer

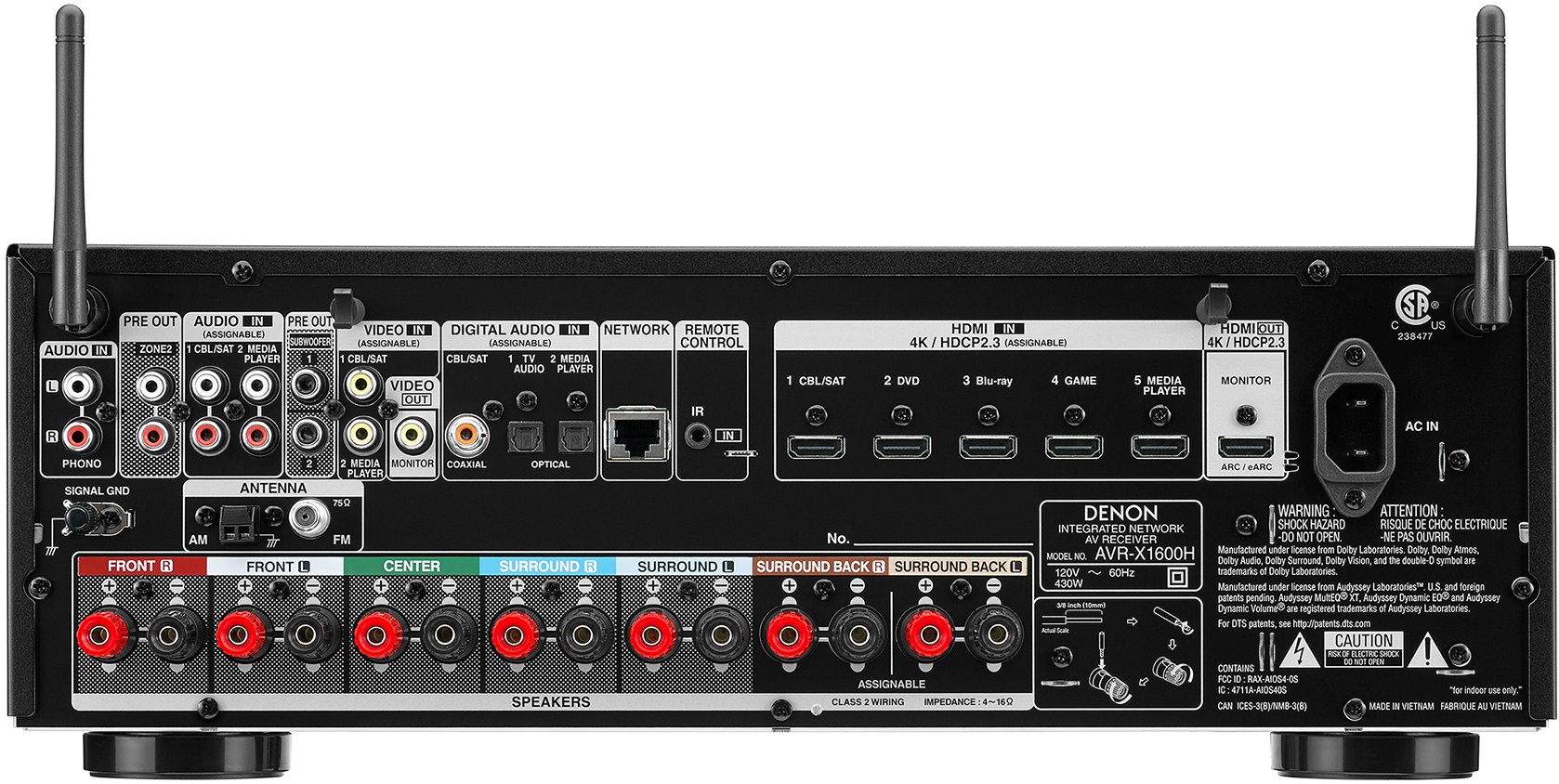

Inputs/Outputs
Composite In / Out 2 / 1
Component In / Out -
HDMI In / Out 5+1 / 1
Multi-room Video Out: Video / HDMI -
Analog In / Out 2 / X
Phono (MM) In
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital 1 / 0
Multichannel Preout ✓ (0.2) / X
Subwoofer Out 2
7.1 Multichannel Input -
Speaker Terminal: Gold Plated Screw / Regular Screw X / ✓
Number of Speaker Terminals 7
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB X / X / X / ✓ / ✓
USB Audio / Made for iPod / Made for iPhone ✓ / X / X
AM/FM Tuner
Specifications
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 80 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 175 W
General
System Remote Control RC-1227
Power Consumption in W 430
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Power Supply AC 120 120 V, 60 Hz
Speaker impedance 4 X 16Ω/ohms
FM section (Tuning frequency range) 87.5 X 107.9 MHz
AM section (Tuning frequency range) 520 kHz - 1710 kHz
Network
DLNA Certified -
Lossy Formats: MP3 / WMA / AAC ✓ / ✓ / ✓
Lossless Formats: FLAC / ALAC / WAV ✓ / ✓ / ✓
DSD Audio Streaming ✓ (2.8/5.6MHz)
Gapless Playback ✓ (FLAC, WAV ,ALAC, DSD)
Internet Radio ✓ (Tuneln)
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports
WiFi
Bluetooth
Media Server

Warranty

Manufacturer Warranties

  • Limited 3-Year Warranty
