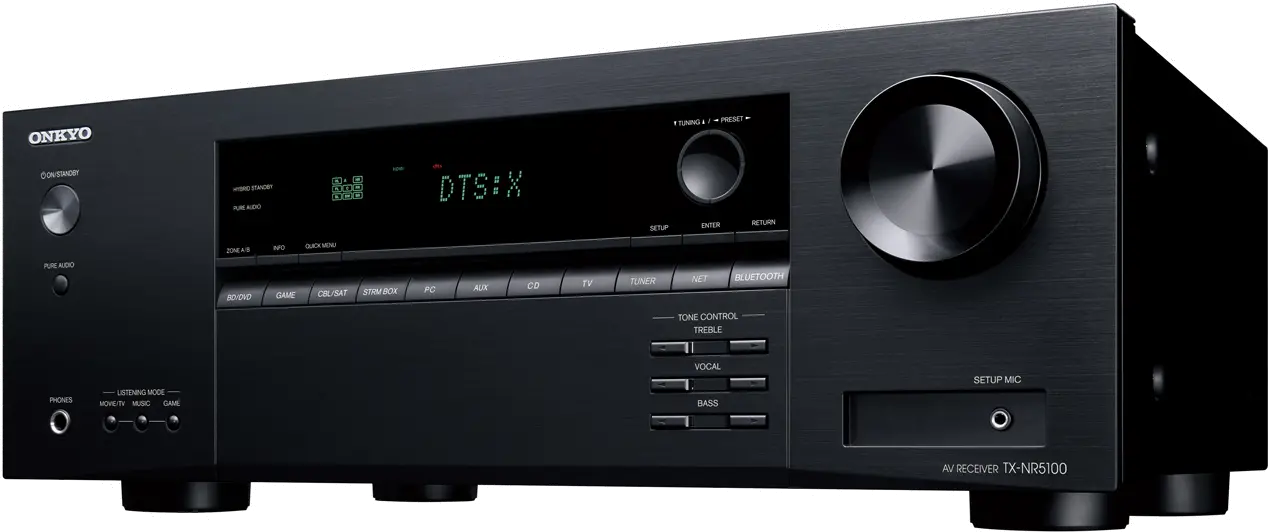

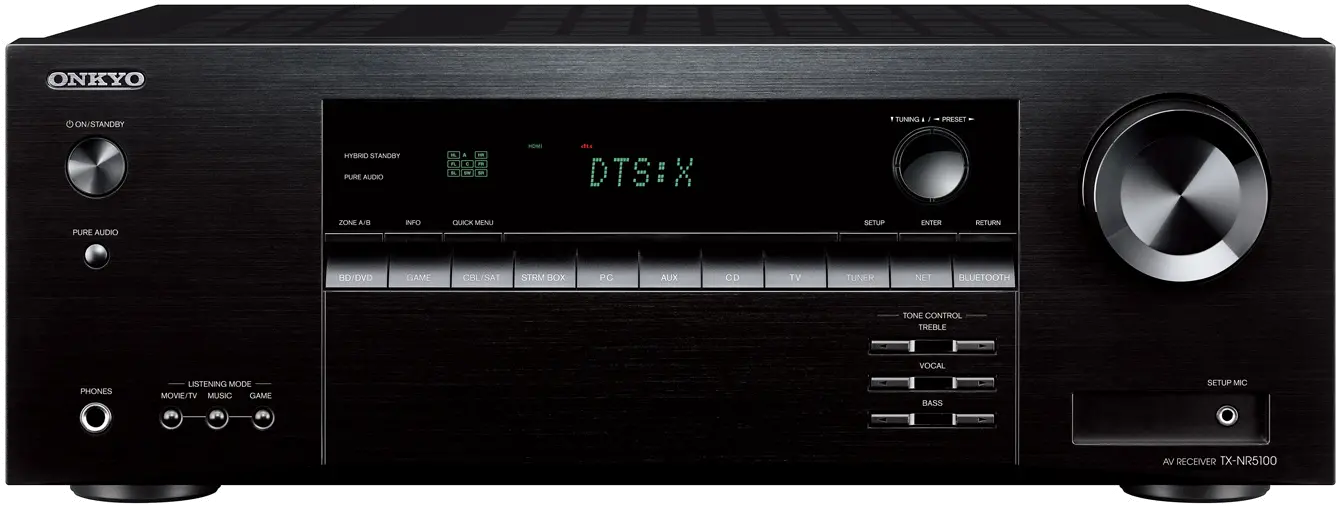

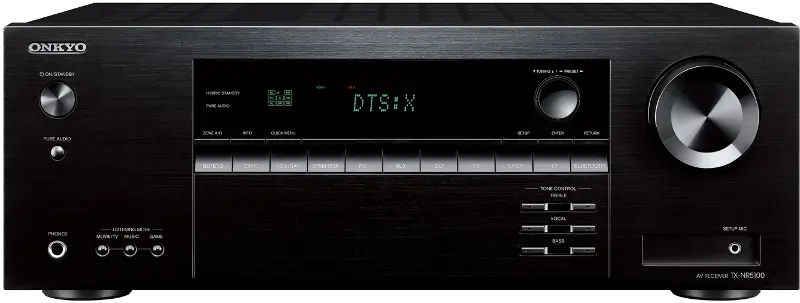

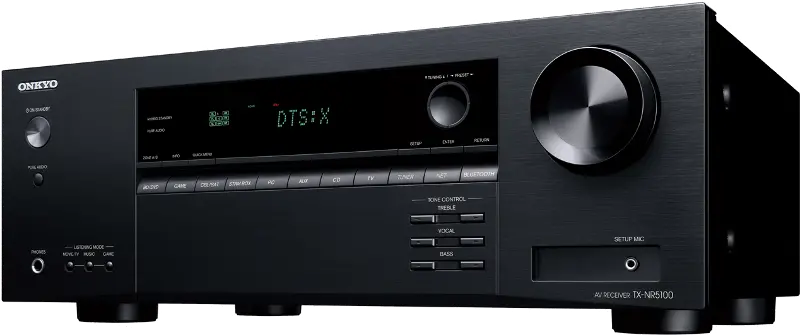

Onkyo TX-NR5100 8K Dolby Atmos, 7.2 Channel AV Receiver
Onkyo TX-NR5100 8K Dolby Atmos, 7.2 Channel AV Receiver
Our SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theater experience.
Cue and control music with Hey Google, Alexa, or Siri; or hear what’s playing through the AVR on wireless headphones with top-notch Bluetooth® with aptX HD transmission technology. The options are virtually limitless.
- Ready for 8K/4K entertainment
- Enhanced Gaming:
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion – VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.
- Immersive Sound from your TV Apps:
eARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos®, DTS-HD Master Audio™, DTS: X®, Dolby® TrueHD.
- Stream your favorite music:
Use Works with Sonos 1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, or TuneIn streaming services
- Voice Control:
Work with your digital assistant in any room with easy Google and Amazon Alexa SMART home ecosystem integrations
- Roon:
plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon Tested device, you can have the confidence that you will enjoy the best possible experience with it
- Klipsch Optimize Mode
allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
- 165 watts x 7 channels (6 ohms, 1 kHz, 10% THD, 1-ch driven)
- 5.2.2-channel Dolby Atmos®
- Dolby Atmos Height Virtualizer and DTS Virtual: X™ 3D sound virtualization technologies
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi®
- Send or receive audio via Bluetooth® wireless technology
- Apple AirPlay 2
- Music made easy with Chromecast built-in
| Collection | TXNR5100 |
|---|---|
| Model | ONKYO TX-NR5100 |
| Dimensions | 17"W x 6"D x 12"H |
| Weight | 24 lbs. |
| General | |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 490 W |
| Power consumption (idle) | 45 W |
| Power consumption (standby) | 0.1 W |
| SMART AV Receiver™ | Works with Sonos (sold separately), Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spot |
| Works with Hey Google or Alexa* | Digital Voice Assistant Sold Separately |
| Stream Capability | 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard |
| Amplifier | |
| Power output (All channels) | 165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven |
| Dynamic power | 160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz) |
| Input sensitivity and impedance | 32k-ohms (Line) |
| Rated RCA output level and impedance | 2.2k-ohms（Zone B PreLine-out） |
| Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Speaker impedance | 4–16 ohms |
| HDMI® 2.1 | Supports: 4K120AB and 8K60B, HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), AL |
| HDMI Sub Out | For media transmission to a projector, gaming monitor, or TV |
| Connectivity | |

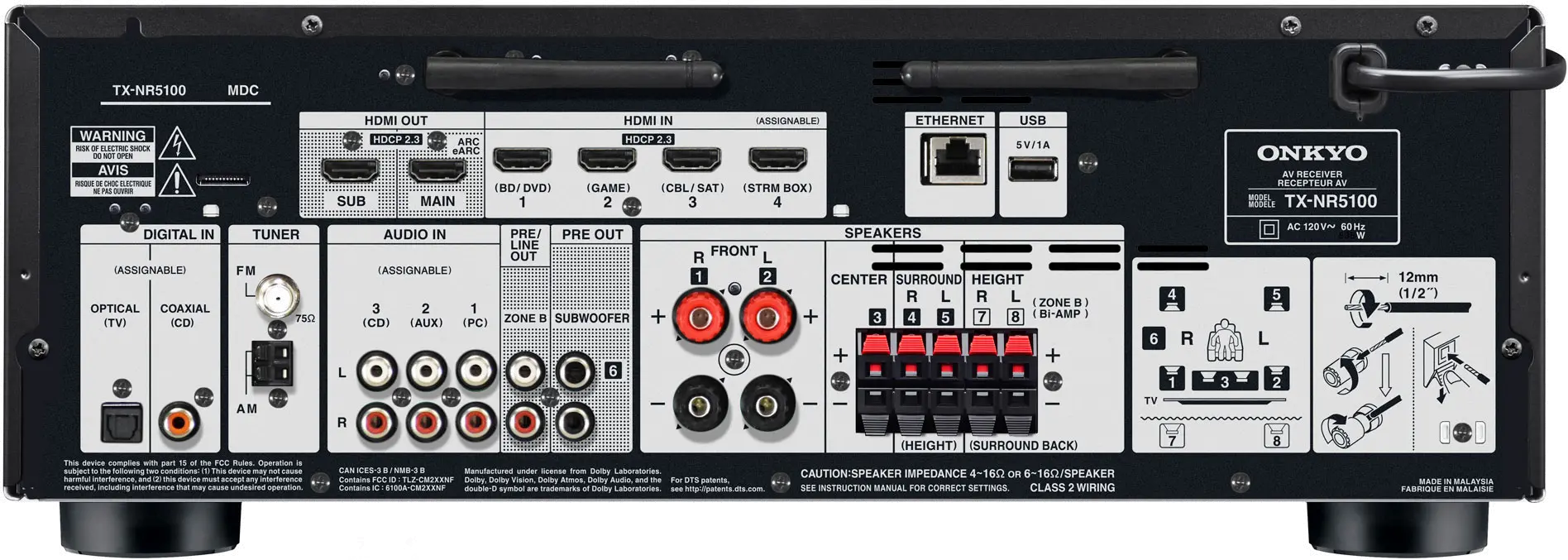

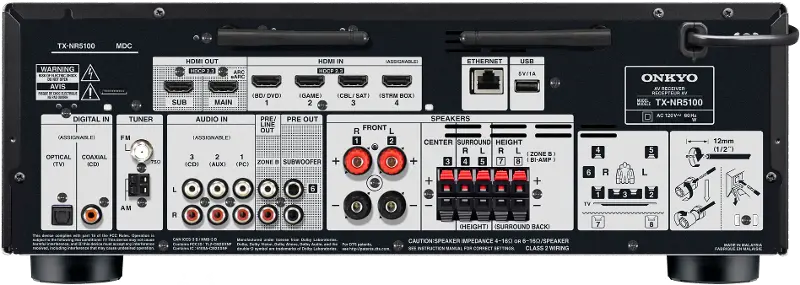

| Rear A/V Inputs | 4 x HDMI 2.1 3 x RCA 1 x Digital Coaxial 1 x Optical TOSLINK |
| Rear A/V Outputs | 2 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone B Pre-/Line-Out |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Other Rear I/O | 1 x RJ45 (Ethernet) Input/Output 1 x USB-A (Power) Output 1 x FM Coaxial F-Type Input 1 x AM Block I |
| Speaker I/O | 5 x Spring Clip Pairs (Center, Height, Rear Surround) 2 x Binding Post Pairs (Front) |
| HDCP Support | Yes, Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60B |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Bi-Amp Capability | Yes |
| Tuner | |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
| What's Included | |
| Indoor FM antenna | Yes |
| AM loop antenna | Yes |
| Speaker setup microphone | Yes |
| Quick Start Guide | Yes |

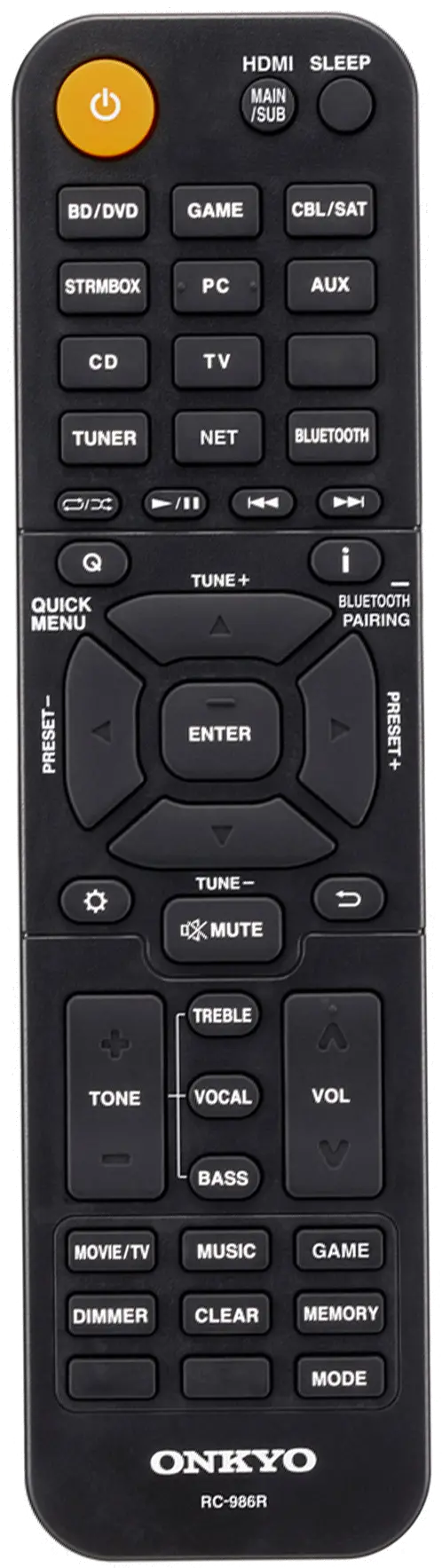

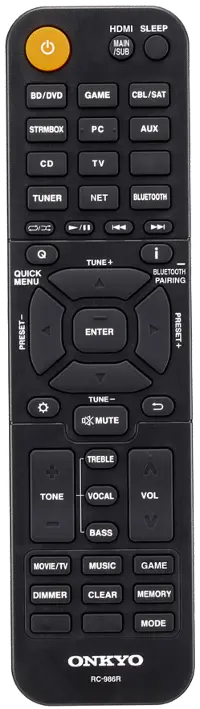

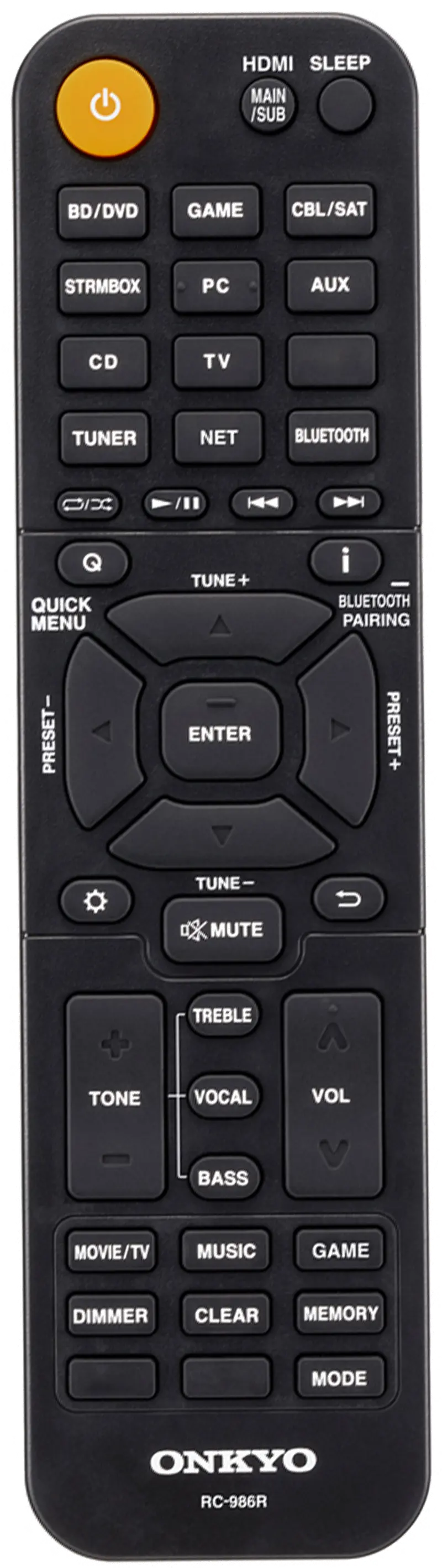

| Remote control | Yes |
| Two AAA (R03) batteries | Yes |
