Klipsch R-610F Floorstanding Speaker
Klipsch R-610F Floorstanding Speaker

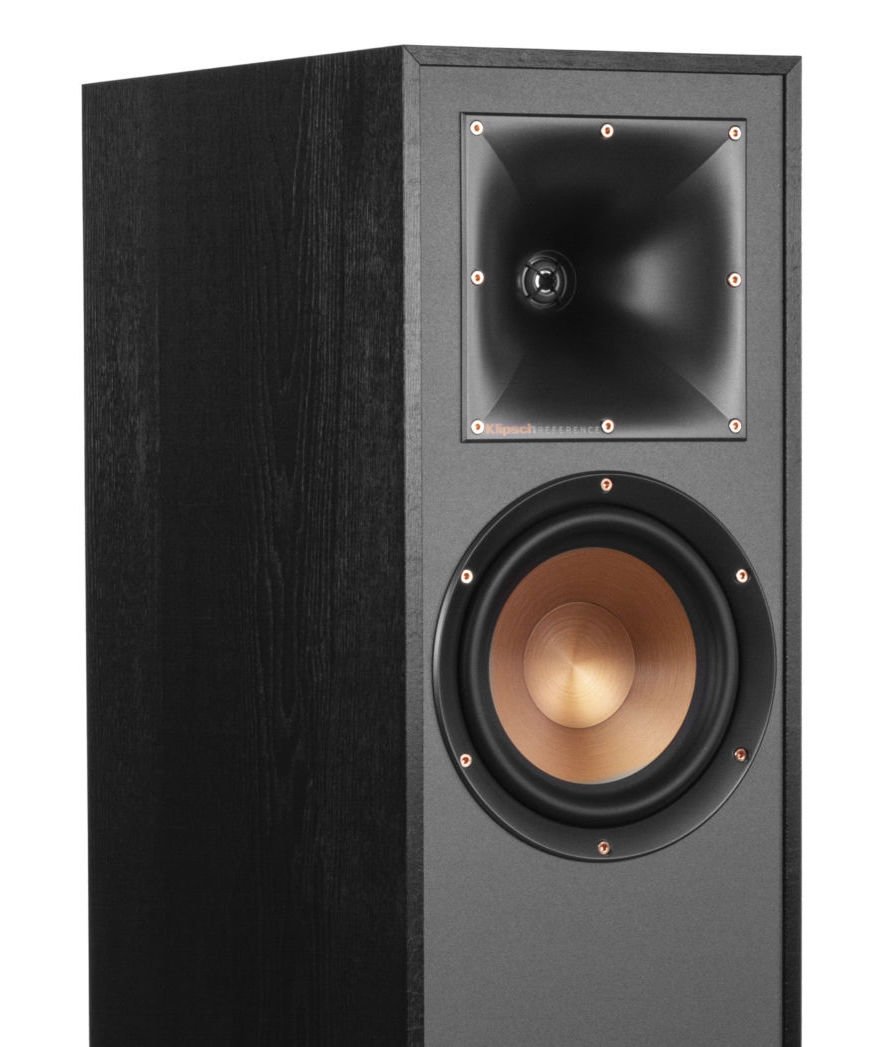

90º x 90º Tractrix Horn
Our exclusive Tractrix® horn technology delivers the power, detail and emotion of the live music experience with the cleanest, most natural sound possible.
Linear Travel Suspension (LTS) Aluminum Tweeter with Kapton Suspension
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. Kapton® is an extremely light and rigid material used in the tweeter suspension to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.
Spun Copper IMG Woofer
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

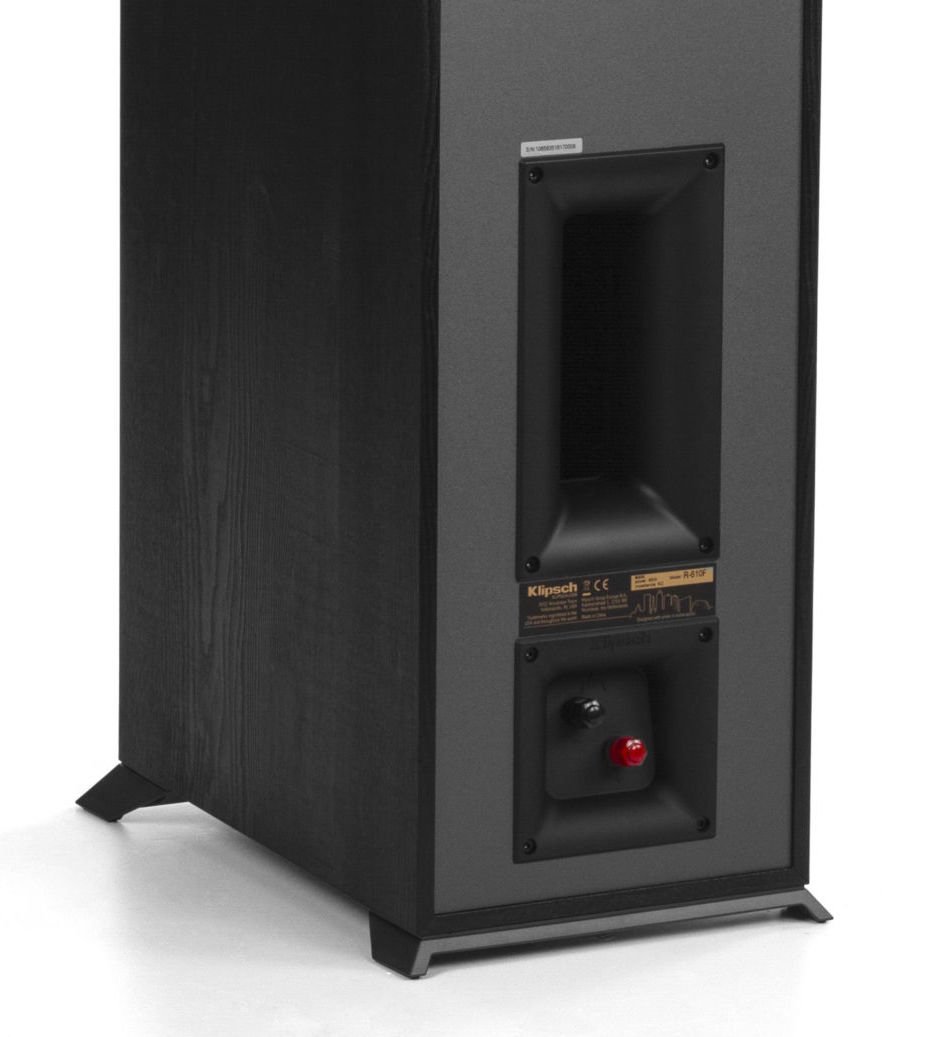

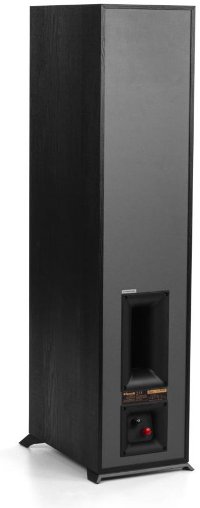

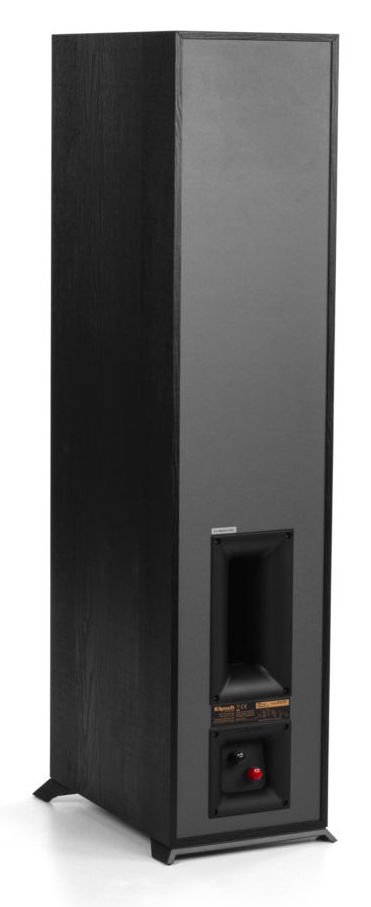

Rear Tractrix Port
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
Tapered Crossover
Tapered array crossovers improve dispersion resulting in improved midrange definition - critical for dialog rich material in center channels.
Sleek, Contemporary Appearance
Exposed fasteners, angled feet and low profile magnetic grilles give the speakers a polished, modern appearance.
MDF Cabinet with Scratch-Resistant, Textured Wood Grain Vinyl
Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
High-Quality Cabinet Design
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy.
The following videos explain how to maximize speaker placement for pristine sound quality.
- Single 6.5" Spun-Copper IMG Woofers
- 90x90 Square Tractrix Horn
- 1" Aluminum LTS tweeter
- Bass-Reflex via Rear-Firing Tractrix® ports

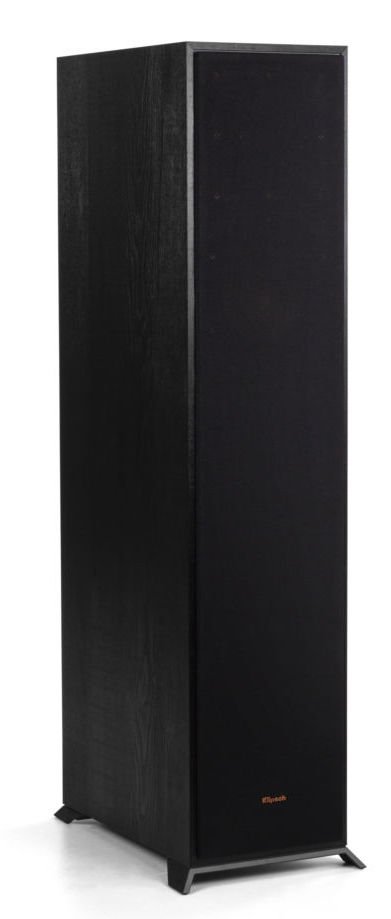

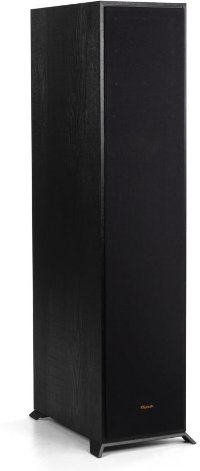

- Strong, Flexible Removable Magnetic Grille
| Manufacturer | Klipsch |
|---|---|
| Collection | Klipsch Reference |
| Model | R-610F/BLK/EA |
| Weight | 44.0 lbs. |
| Finish | Black |
| Frequency Response | 45Hz - 21kHz +/- 3dB |
| Sensitivity | 94 dB @ 2.83V/1M |
| Power Handling (Cont/Peak) | 85W/340W |
| Normal Impedance | 8 ohms Compatible |
| Crossover Frequency | 1,800 Hz |
| High Frequency Driver | 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Low Frequency Driver | Single 6.5” spun-copper IMG woofer |
| Enclosure Type | Bass-Reflex via rear-firing Tractrix®ports |
| Inputs | Single Gold Plated Binding Posts |
| Product Weight | 36 lbs (16.3 kg) |
