Overview

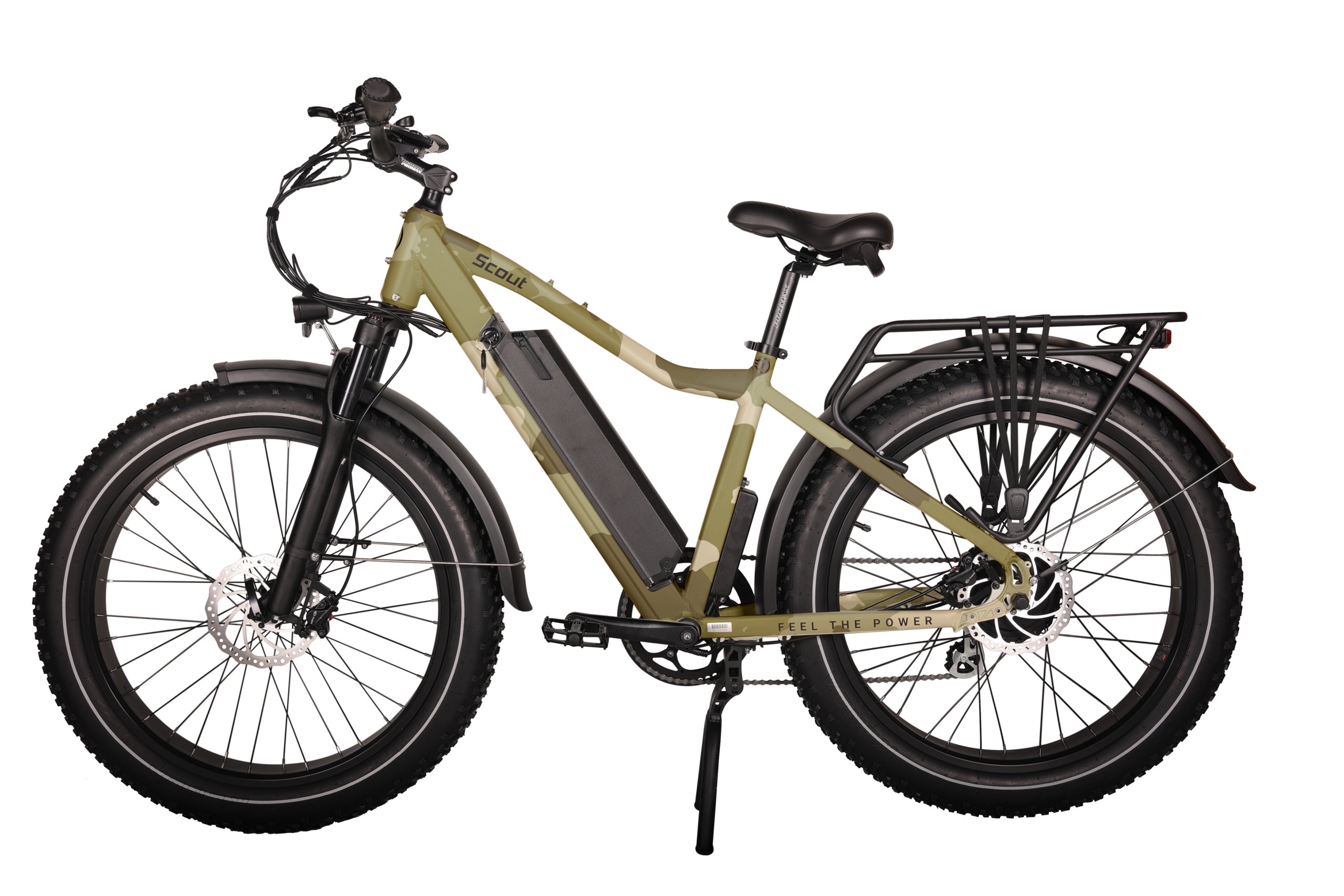

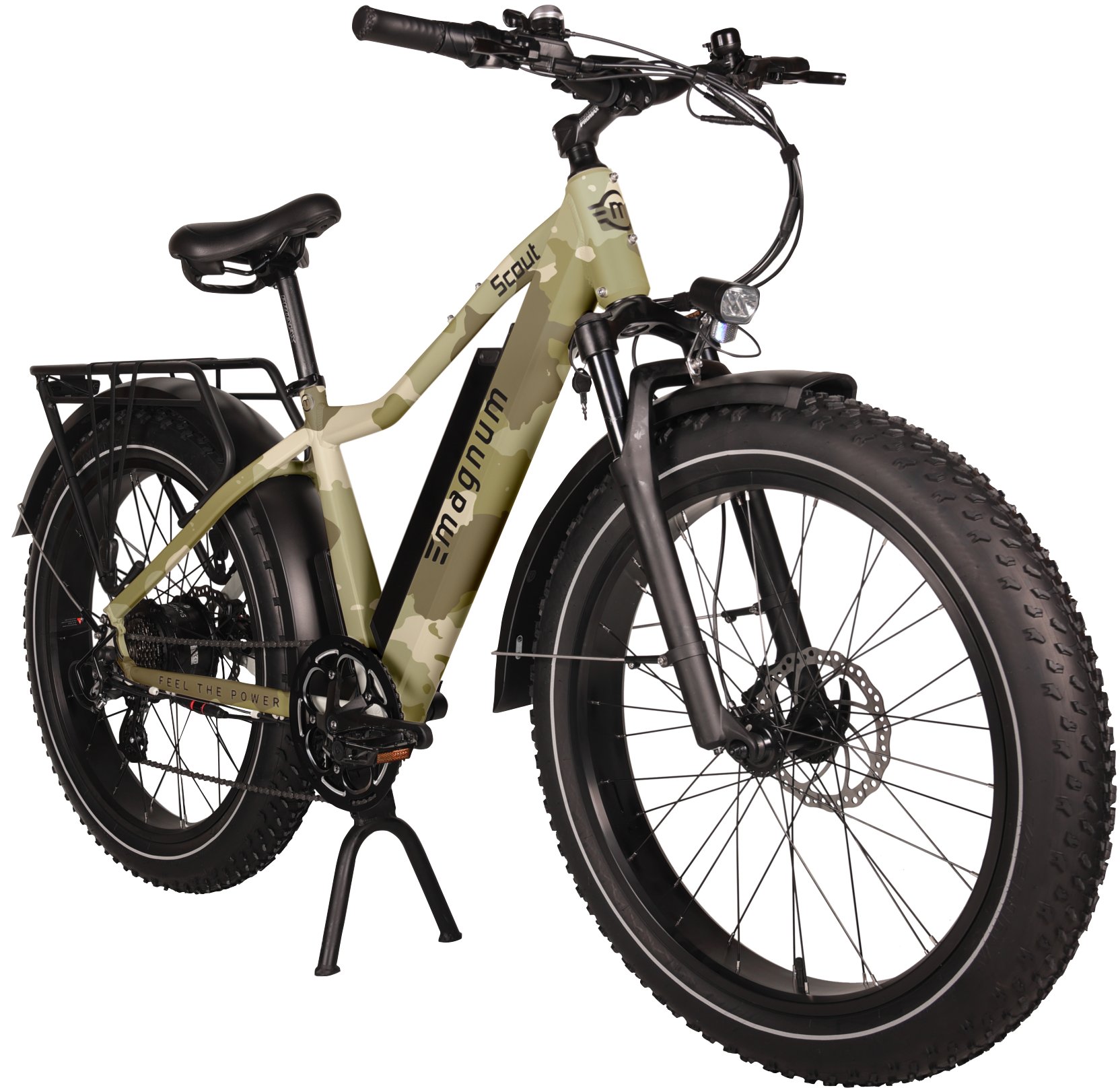

Hit the trails with the Magnum Scout eBike! This forest camo green electric bike has an estimated 65-mile range on a single charge and hits a top speed of 28mph. The 4" knobby tires take bumps, gravel, and dirt with ease. Ride with confidence with a 1 year comprehensive warranty.

Features

  • 48v 750W Nominal Motor
  • Estimated charge time is 8.5 hours
  • Up to 65 mile range per charge
  • Top speed of 28mph

Specs

Collection Scout
Weight 75 lbs.
Color Forest Camo
Body Position Forward/Upright
Electric Bike Class Throttle On-demand (Class 2), Speed Pedelec (Class 3)
Max Load 260 lbs.
Electronic Details
Motor Type Bafang Rear Hub
Motor Output 48v 750W Nominal
Battery Voltage / Amp Hours / Watt Hours 48v / 17.5Ah or 19.5Ah / 840Wh or 936Wh
Estimated Charge Time 8.5 Hours for 17.5Ah Battery. 9.7 Hours for 19.5Ah Battery.
Estimated Min And Max Range 17.5Ah battery 35-65 Miles / 19.5Ah battery 45- 75 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level.)
Display Readouts Power Output Indicators (6 Bars), Battery Level (6Bars) Speed, Trip,Trip Time, Time, ODO, Power output, PAS, Battery Level
Drive Modes Cadence Sensing Pedal Assist, Twist Throttle
Top Speed Up to 28mph With Pedal Assist, 20mph Throttle Only
Lights Front and Rear Integrated
Bicycle Details
Total Weight 74 lbs.
Battery Weight 10 lbs.
Frame Type High Step with semi-integrated battery
Frame Material Aluminum
Fork Details Suspension Fork with Lockout
Attachment Points Rear Rack, Bottle Cage Mount, Fender Mounts, Front Carrier, Derailleur Guard Mounts
Gearing Details 7 Speed Shimano
Shifter Details 7 Speed Shimano
Cranks 52T 170mm
Pedals Welgo Platform
Stem / Handlebar Promax Fixed
Brake Details Hydraulic Disc Brakes
Grips Leather Ergo
Saddle Comfort
Seatpost / Seatpost Dimensions Promax 30.4mm
Fenders Front and Rear
Tires 26 x 4 Knobby
Wheel Size 26″ X 4″
