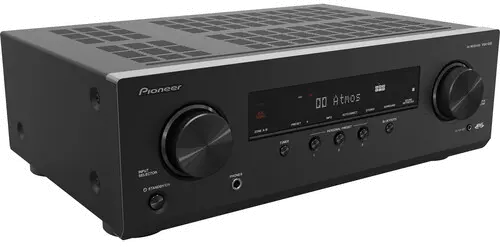

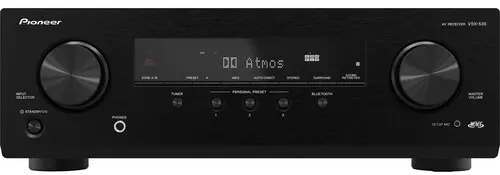

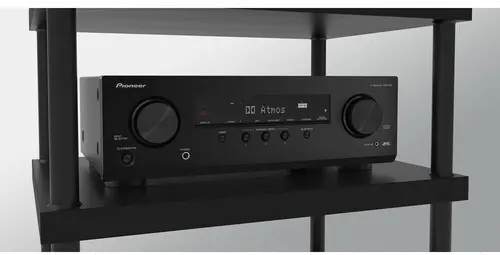

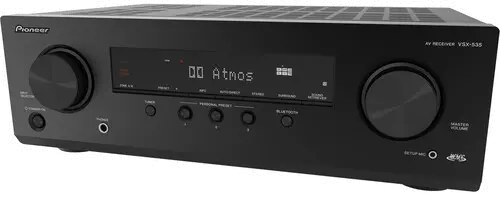

Pioneer VSX-535 5.2-Channel A/V Receiver
- Dolby Atmos Movies and Music
You have two options to enjoy the immersive height effects of Dolby Atmos sound in your TV and movies. You can add a 3.2.2-channel speaker setup with dedicated up-firing speakers, or you can simulate the experience by using Dolby Atmos Height Virtualizer. The spatial audio effect of Dolby Atmos can also be enjoyed when listening to certain music tracks. The VSX-535 supports Dolby Atmos Music from either an HDMI source or optional streaming devices.
- Custom Audio Room Tuning
Included with the VSX-535 is an MCACC microphone and auto room tuning software. They work together to automatically calibrate the audio output for your room, compensating for differences in speaker size, level, and distance, giving you the best sound quality possible.
- Advanced Sound Retriever
This feature is designed to improve the quality of your digital library by restoring the output quality of compressed audio formats, such as MP3, WMA, and AAC to lossless quality.
| Brand | Pioneer |
|---|---|
| Collection | VSX535BMDC |
| Model | VSX535BMDC |
| Dimensions | 17.1"W x 12.6"D x 5.8"H |
| Weight | 21 lbs. |
| Amplifier | |
| Channels | 5.2 |
| Amplifier Class | Class-AB |
| Power Output per Channel | 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 1-Channel Driven: 150 W at 6 Ohms / 1 |
| Audio Processing | |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround |
| Upmixing Technology | Dolby Atmos Height Virtualization Technology |
| Supported File Formats | AAC, MP3, WMA |
| Video | |
| HDR Compatibility | HDR10, Dolby Vision |
| Upscaling | No |
| Connectivity | |

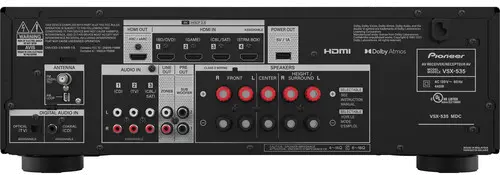

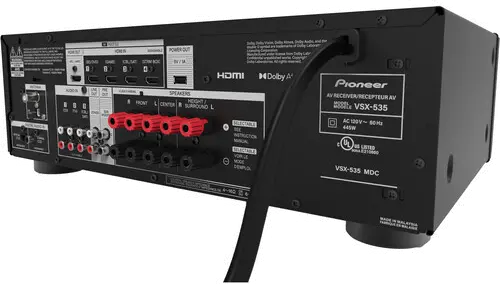

| Rear A/V Inputs | 4 x HDMI 1 x Optical TOSLINK 1 x Digital Coaxial 3 x Stereo RCA |
| Rear A/V Outputs | 1 x HDMI 1 x Stereo RCA Zone B Line-Out 2 x RCA Subwoofer Pre-Out |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Other Rear I/O | 1 x USB-A (Power) Output 1 x AM Block Input 1 x FM Coaxial F-Type Input |
| Speaker I/O | 5 x Binding Post Pairs (Front, Center, Rear Surround) |
| HDCP Support | Yes, Version 2.3 |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Wireless Connectivity | |
| Wi-Fi | No |
| Bluetooth | Yes |
| Tuner Section | |
| Tuner Type | AM, FM |
Manufacturer Warranties
- 1 Year Parts & Labor
